W Solar Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

SKU: W-IF10
$19.99
FUSE AMP

Delivery and Shipping

Free Shipping on All Orders!

30 Day Money Back Guarantee!

Pay with Ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

 FEATURES

Fuse Can Replace.

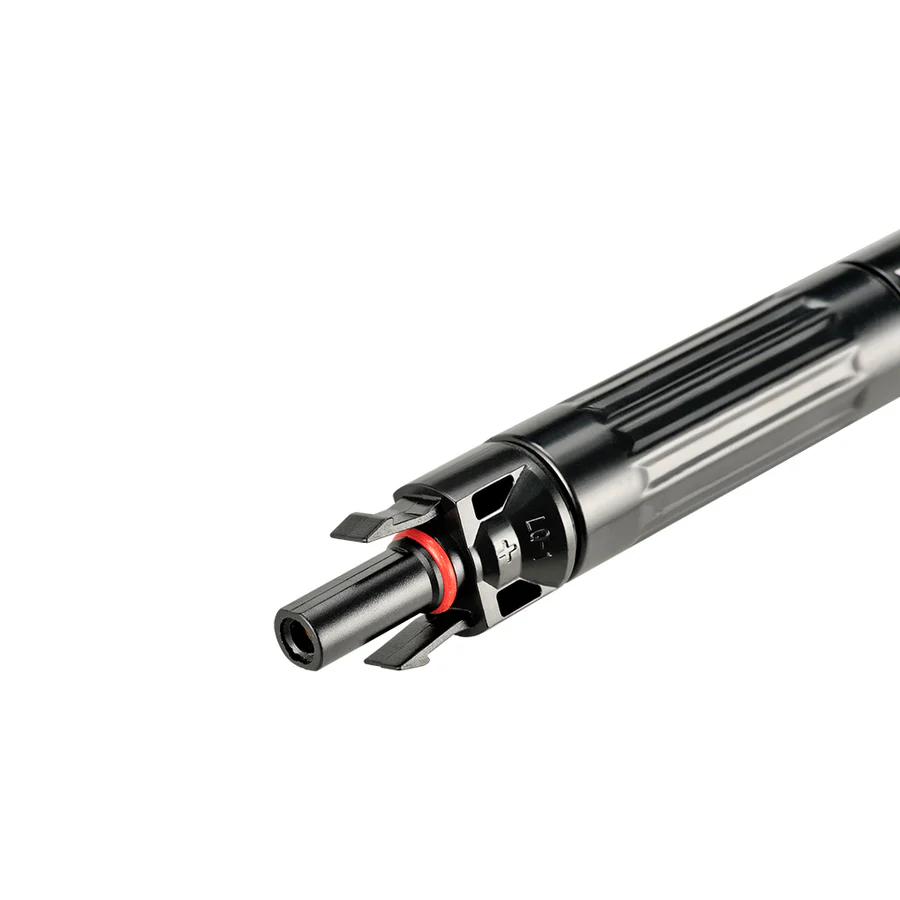

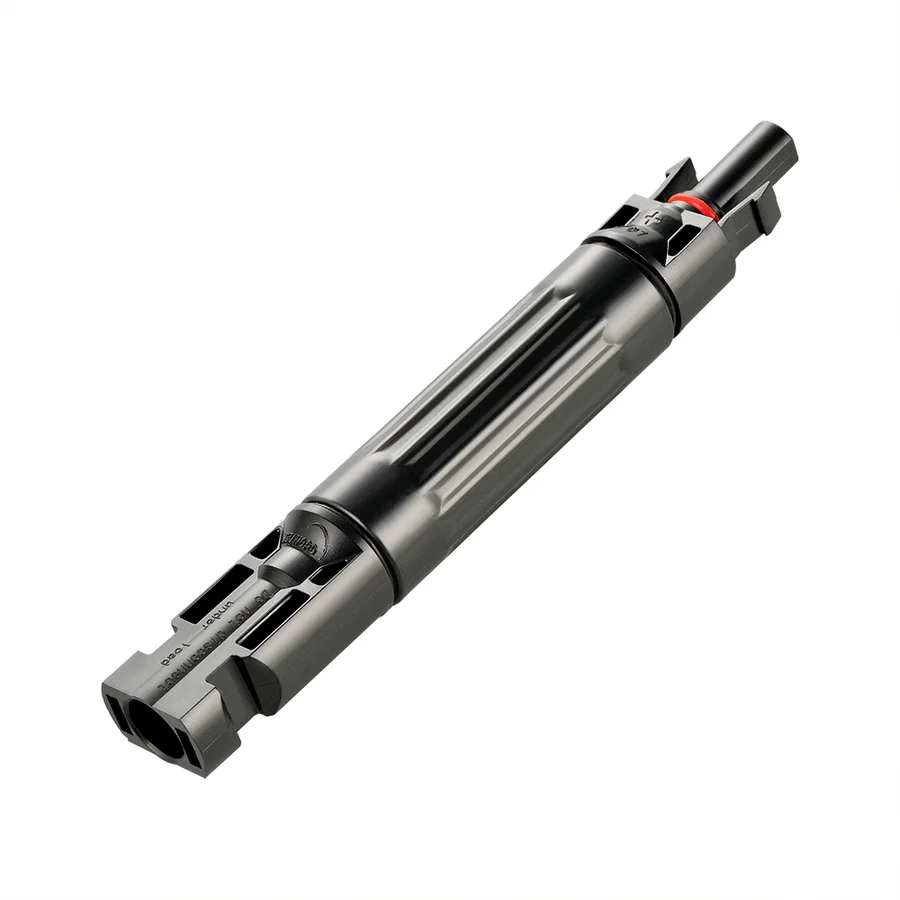

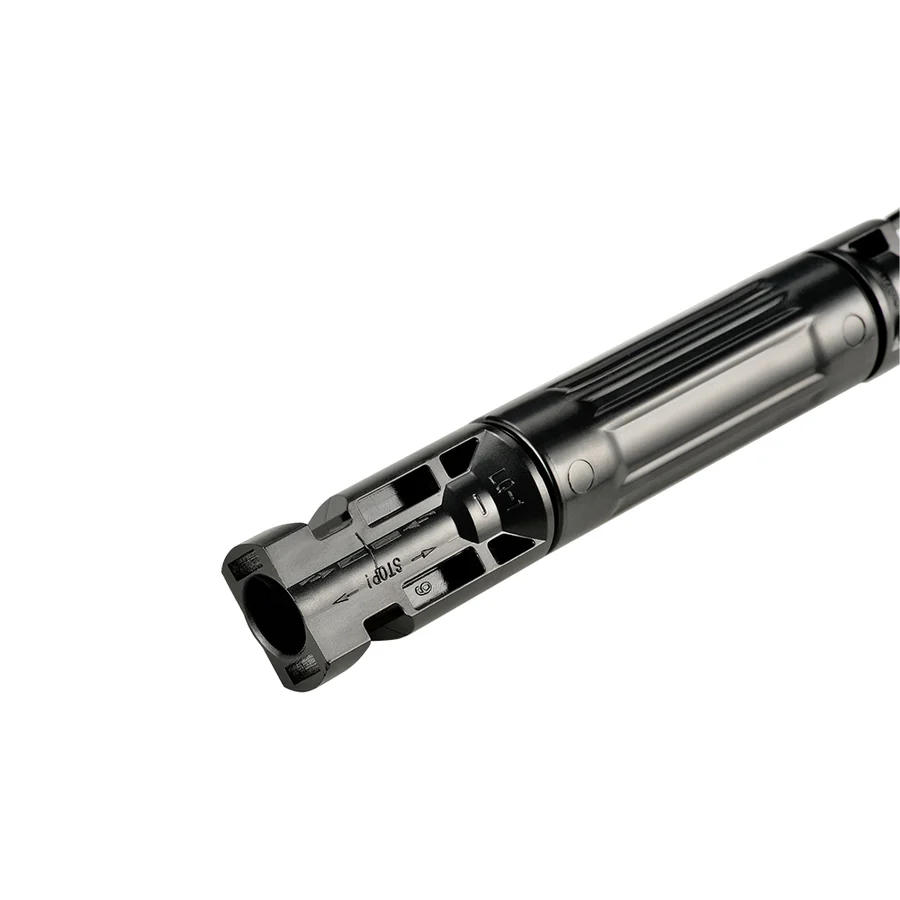

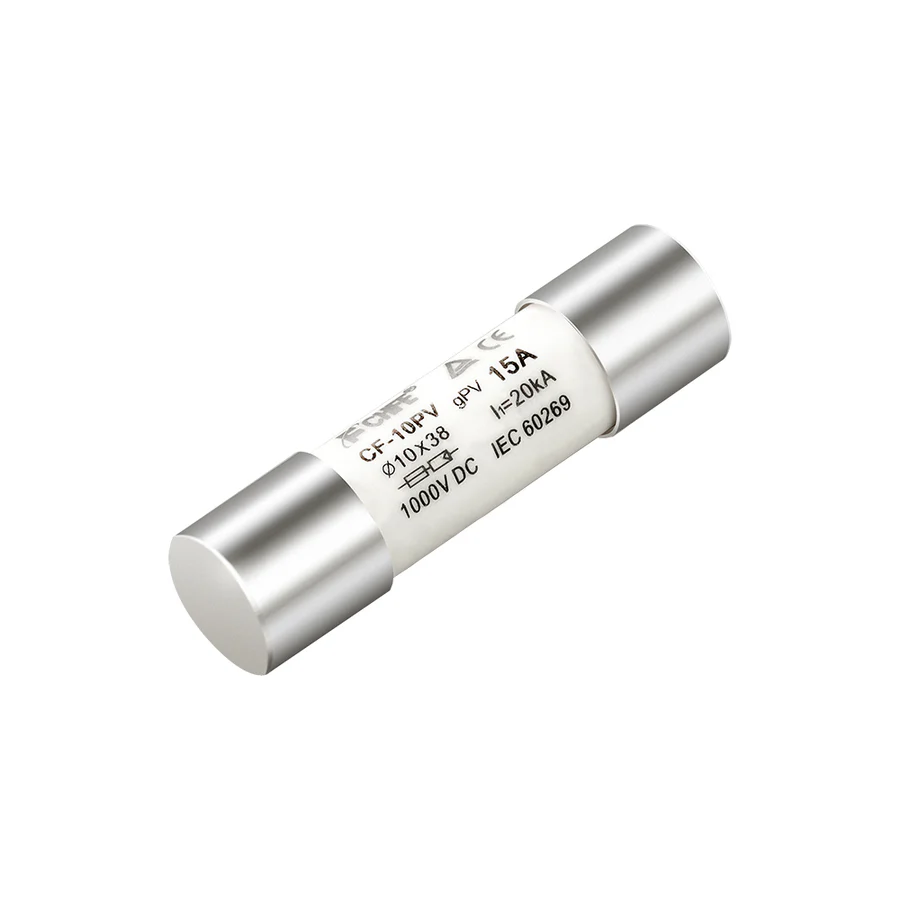

10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.

Compatible with PV cables with different insulation diameters.

Designed for a wide range of DC applications.

Simple plug-and-play.

Auto-lock equipment of male and female points renders connections easy and reliable.

Waterproof fuse holder - IP67 Class Protection.

Insulation material PPO.

High current-carrying capacity.

Prevent large currents from damaging the solar panels.

Designed to provide complete single-circuit protection to your solar power array.

Protection Class II.

The connector adopts touch and insertion of the reed with an inner-knob type.

Purchase this product for extra protection on your system.

SPECIFICATIONS

Rated Current: 10A/15A/20A/30A

Degree of Protection: IP2X/IP67

Rated Voltage: 1000 VDC

Flame Class: UL94-V0

Test Voltage: 6000V (50Hz, 1 min)

Safety Class: II

Overvoltage Category: CATIII

Suitable Connector: Solar Connector

Contact Resistance of Plug Connector: 1mΩ

Insertion Force / Withdrawal Force: ≤50N / ≥50N

Contact Material: Copper, Silver Plated

Insulation Material: PPO

Temperature Range: -40℉~257℉
