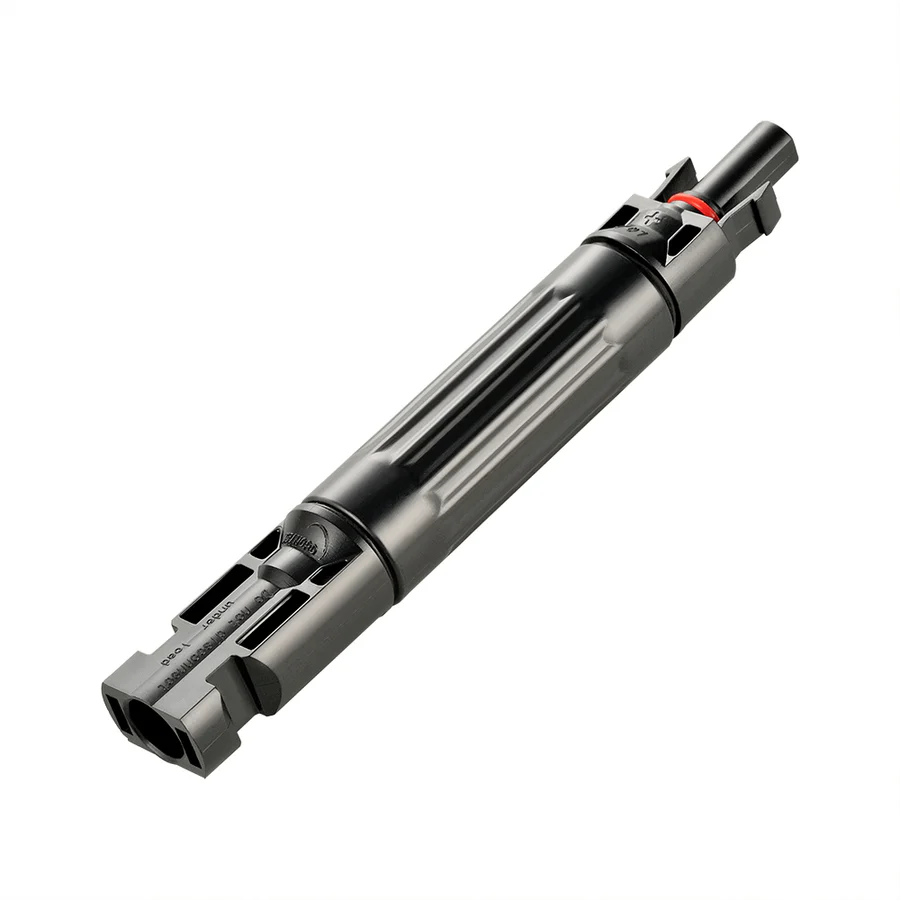

W Solar Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A
W Solar Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A - 10A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
✔Free Shipping on All Orders!
✔30 Day Money Back Guarantee!
W Solar Inline Fuse Holder | Waterproof Replacement Inline Fuse Hol...
Pay with Ease
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FEATURES
Fuse Can Replace.

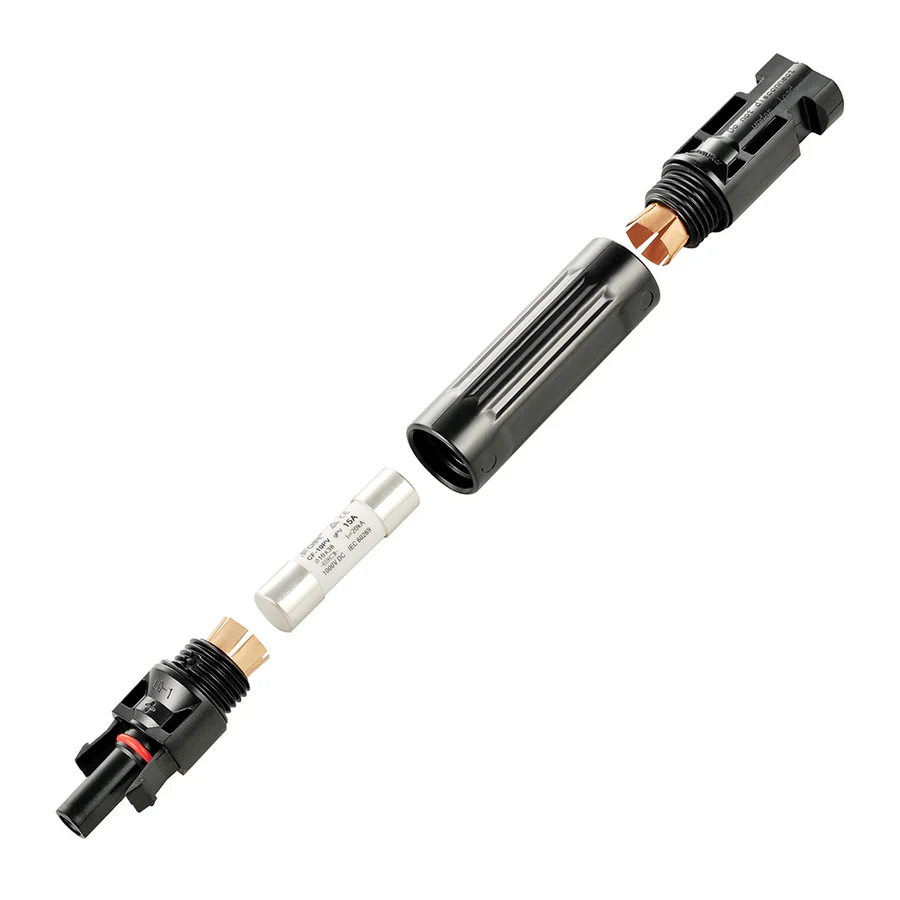

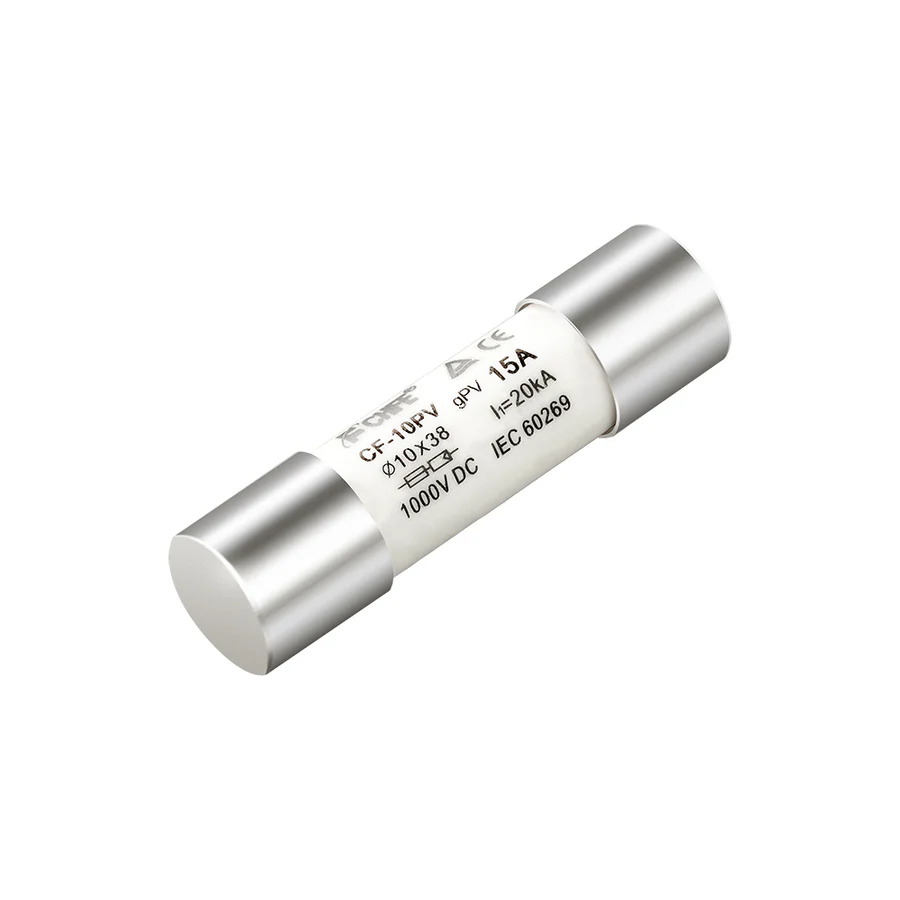

10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
Compatible with PV cables with different insulation diameters.
Designed for a wide range of DC applications.
Simple plug-and-play.
Auto-lock equipment of male and female points renders connections easy and reliable.
Waterproof fuse holder - IP67 Class Protection.
Insulation material PPO.
High current-carrying capacity.
Prevent large currents from damaging the solar panels.
Designed to provide complete single-circuit protection to your solar power array.
Protection Class II.
The connector adopts touch and insertion of the reed with an inner-knob type.
Purchase this product for extra protection on your system.
SPECIFICATIONS
Rated Current: 10A/15A/20A/30A
Degree of Protection: IP2X/IP67
Rated Voltage: 1000 VDC
Flame Class: UL94-V0
Test Voltage: 6000V (50Hz, 1 min)
Safety Class: II
Overvoltage Category: CATIII
Suitable Connector: Solar Connector
Contact Resistance of Plug Connector: 1mΩ
Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated
Insulation Material: PPO
Temperature Range: -40℉~257℉
