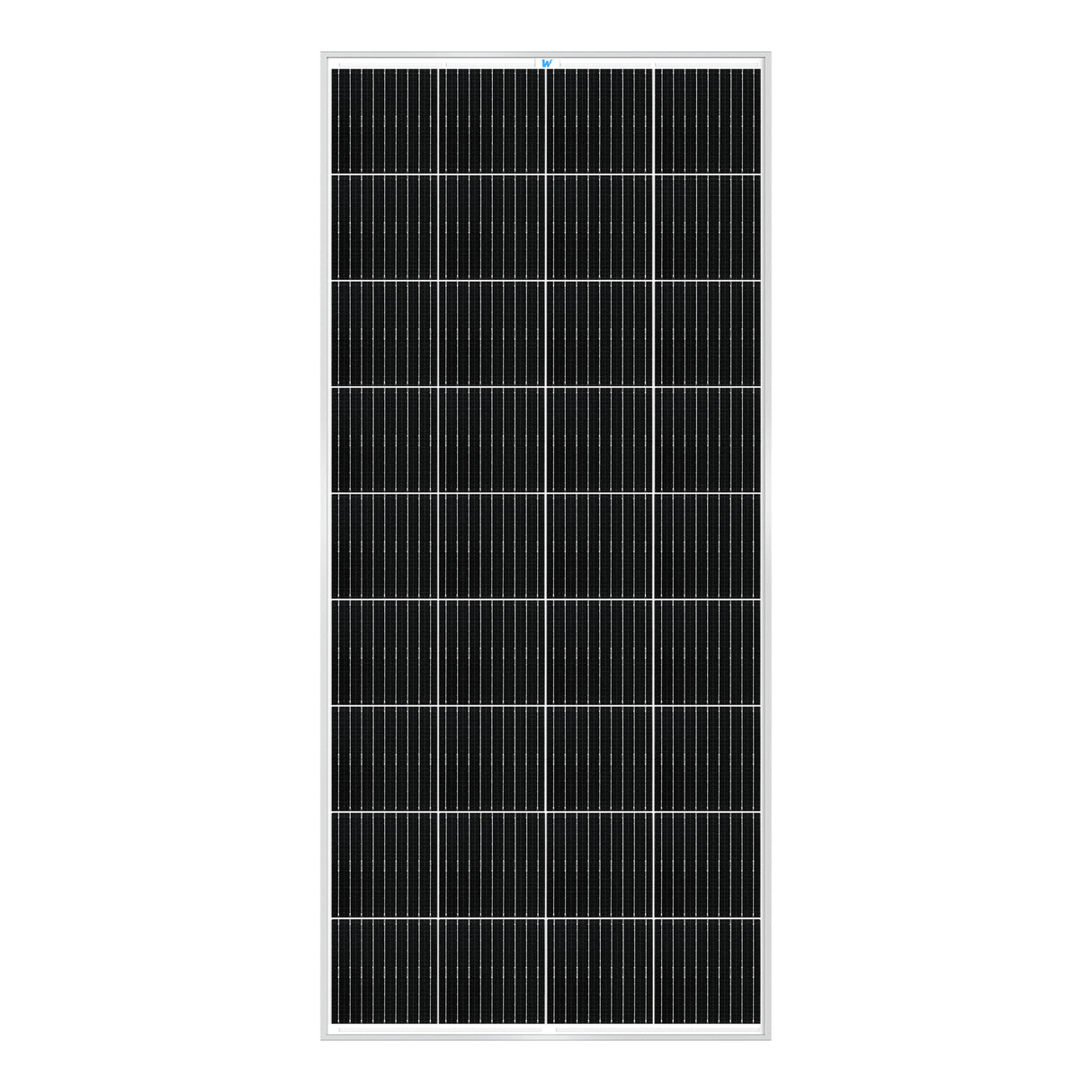

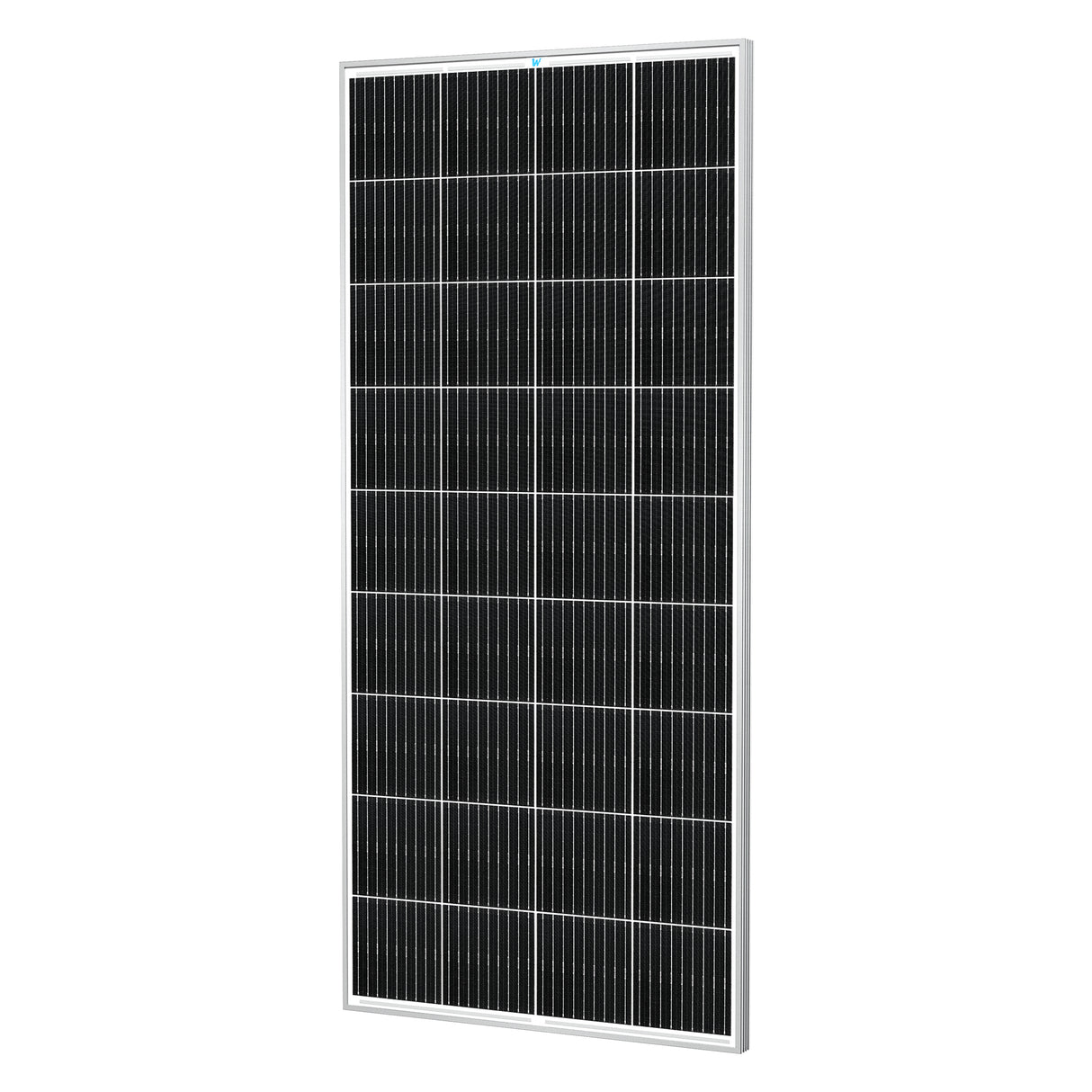

W SOLAR 200 Watt 12 Volt Monocrystalline Solar Panel

Features

• 12V off-grid solar panel.
• 0~+5W guaranteed positive power output.
• 9 busbar solar cell configuration.

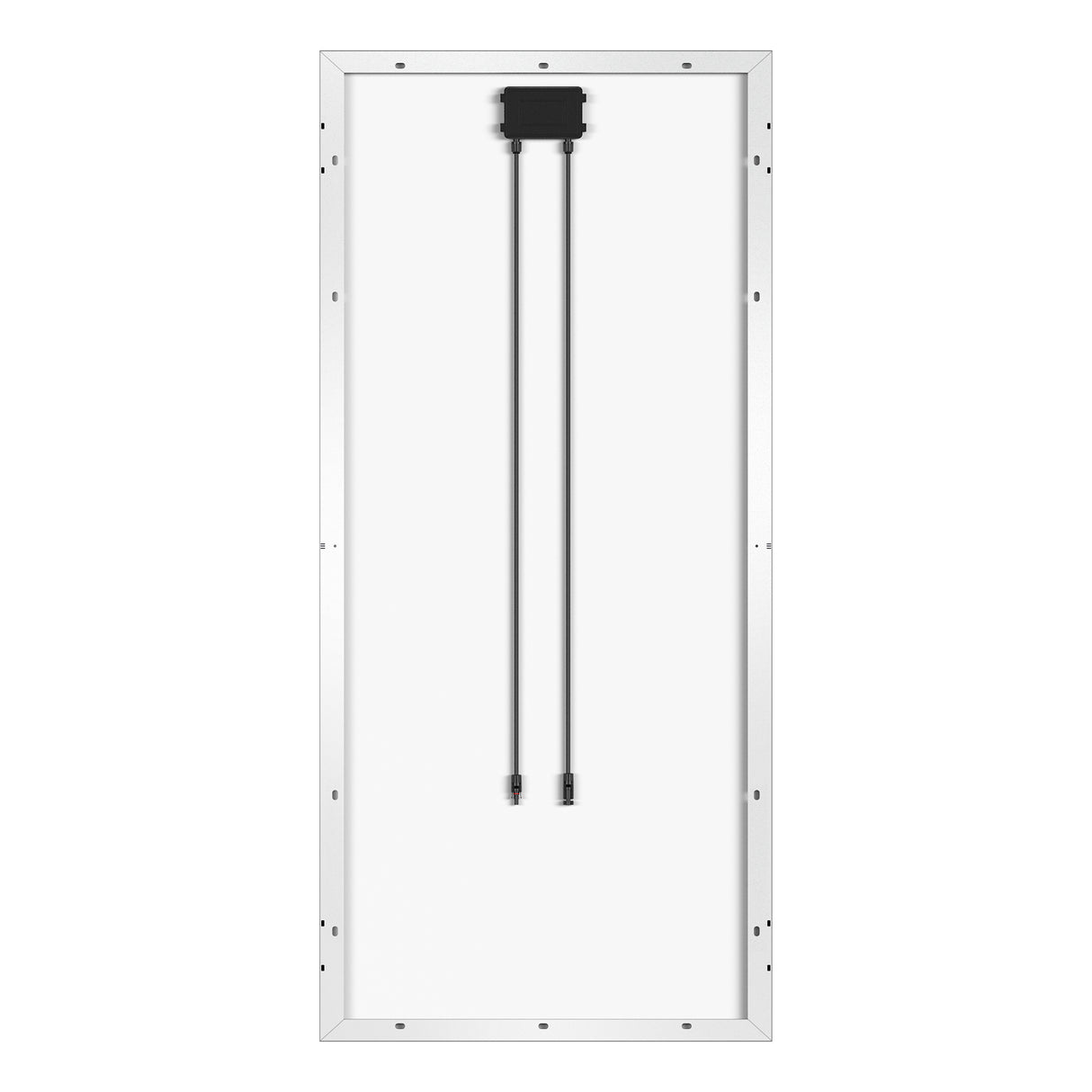

• Plug and play junction box.
• Industry standard quick connect cables (Solar Connectors) work in series or in parallel.
• Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection).
• Lightweight anodized aluminum frame.
• High transmission, AR (anti-reflective) coated tempered glass.
• Excellent low light performance on cloudy days, mornings and evenings.
• Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h).

Installation

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Warranty

• 25 years warranty limited output power.

Tech Specs

Built-in Components

• W SOLAR 200 Watt Monocrystalline Solar Panel
• Panel Leads (Pair): 12AWG, 3FT each
• IP67 Rated waterproof junction box
• IP67 Rated waterproof solar connectors

Specifications

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 18.4 V
• Maximum Power Current(Imp): 10.9 A
• Open Circuit Voltage(Voc): 21.8 V
• Short Circuit Current(Isc): 11.6 A
• Maximum System Voltage(Vmax): 1000 VDC
• Weight: 23.6 lb
• Dimensions:  52.0 × 29.9 × 1.2 in
