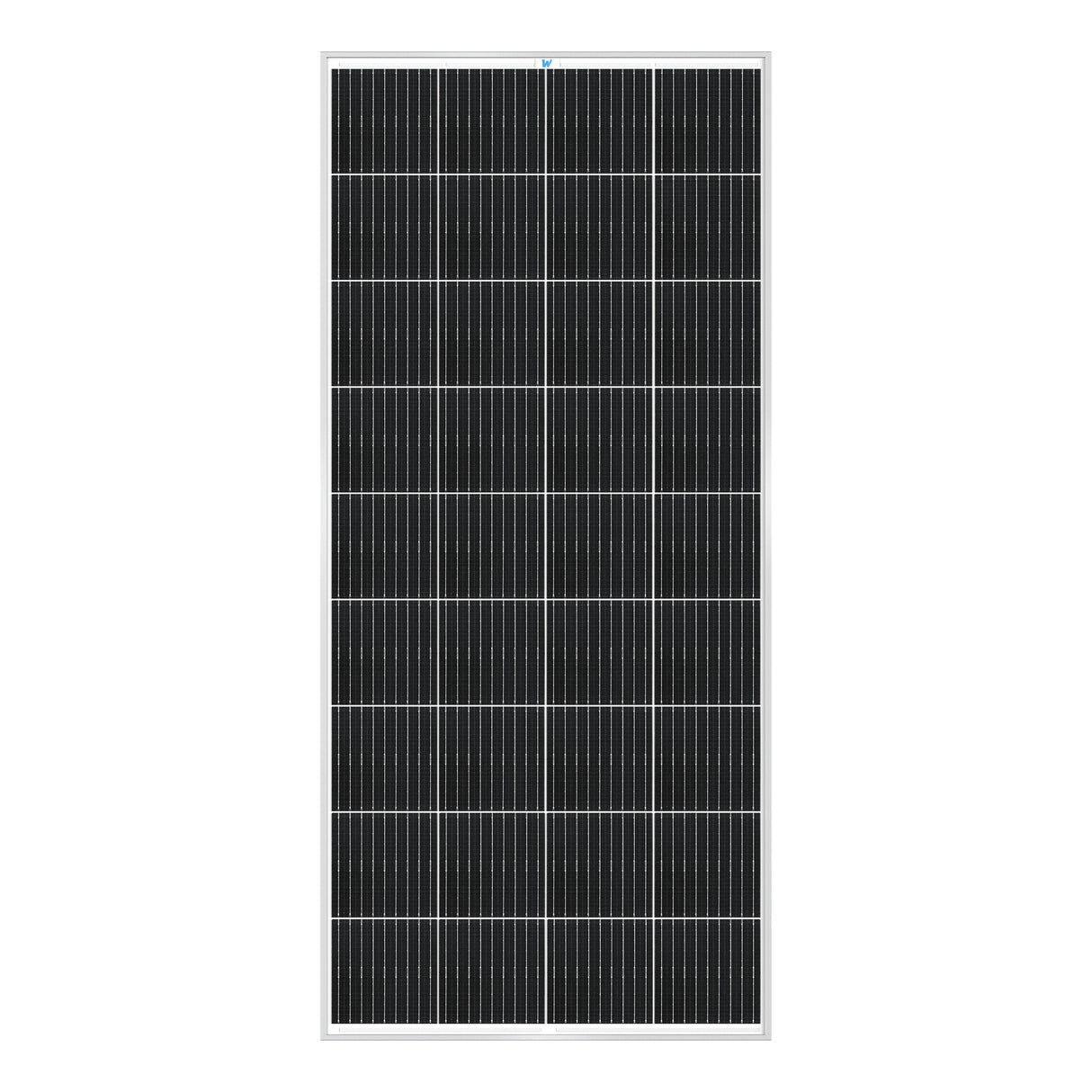

W SOLAR 200 Watt 24 Volt Monocrystalline Solar Panel
Pay with Ease
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FEATURES
24V off-grid solar panel.
0~+5W guaranteed positive power output.
9 busbar solar cell conffguration.
Plug and play junction box.
Industry standard quick connect cables (Solar Connectors) work in series or in parallel.
Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection).
Lightweight anodized aluminum frame.
High transmission, AR (anti-reflective) coated tempered glass.
Excellent low light performance on cloudy days, mornings and evenings.
Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h).
INSTALLATION
Easy installation and handling for various applications.
Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
Compatible with on-grid and off-grid inverters.
WARRANTY
25 years warranty limited output power.
BUILT-IN COMPONENTS
W SOLAR 200 Watt Monocrystalline Solar Panel
Panel Leads (Pair): 12AWG, 3FT each
IP67 Rated waterproof junction box
IP67 Rated waterproof solar connectors
SPECIFICATIONS
Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 37.6 V
Maximum Power Current(Imp): 5.32 A
Open Circuit Voltage(Voc): 45.5 V
Short Circuit Current(Isc): 5.83 A
Maximum System Voltage(Vmax): 1000 VDC
Weight: 24.2 lb
Dimensions: 58.7 × 26.8 × 1.4 in
