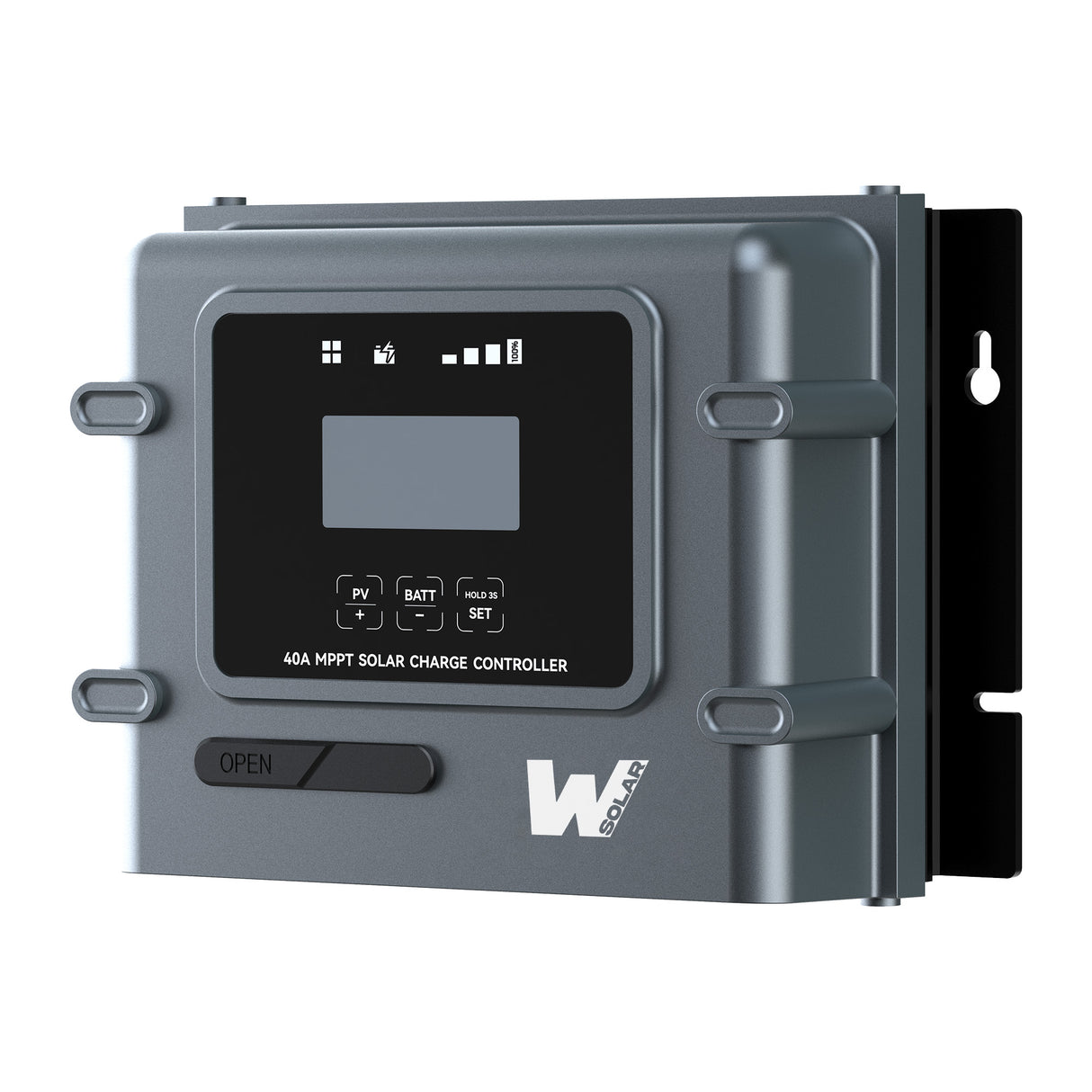

W SOLAR 40A MPPT Solar Charge Controller | Auto 12V/24V | Multi-Battery Support
W SOLAR 40A MPPT Solar Charge Controller | Auto 12V/24V | Multi-Battery Support is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
✔Free Shipping on All Orders!
✔30 Day Money Back Guarantee!
W SOLAR 40A MPPT Solar Charge Controller | Auto 12V/24V | Multi-Ba...
Pay with Ease
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FEATURES
True MPPT, the Latest Algorithm
Tracking Efficiency Above 99.5%
Charge Conversion Efficiency as High as 98%
12V / 24V DC System Self-Adaptation
Reverse Discharge Protection
Targeted for Accurate CUSTOM Setting
Over Voltage Protection
Common Negative Connection
Charging Data Storage
Internal Bluetooth (Optional)
External Battery Temp Sensor (Optional)
Conformal Coating for Inside Board
External Digital Remote Display (Optional)
In-house Design and Manufacture
Extensive Internal Electronics In-Circuit Protections and Safety Protections
Targeted for Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
Targeted for Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Battery Type Selection
UNIQUE PERFORMANCE
Splash Proof IP43
8+1 Battery Type Option
Rubber Mask for Connector Protection
Unique Charge Management Technology for Safe and Optimized Charging
Unique Multiple Peak Detection Technology for Maximum Power Point Tracking
Housing Enclosure in Patent Application
Large and Informative LCD Display to Show Solar, Battery, and Setting Parameters
Unique Fully Discharged Battery Recovery or Restart for Lead-Acid or Lithium Batteries
Unique and Concise LED Bar & Transparent Windows Indications In Patent Application
SPECIFICATIONS
System Nominal Voltage: 12/24V Auto
Max. PV Open Circuit Voltage: 100V DC
Charging Technology: MPPT
Max. PV Charging Current: 40A
Max. Recommended PV Input Power: 600 W (12V) / 1200 W (24V)
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Internal PCBA, IP22 for Connection Area
Net Weight: 2.58 lb
Dimensions (L*W*H): 7.7*5.5*2.9 in
